Traditional Appliances for Kitchen
High Tech Appliances for Kitchen
Manila Head Office
Manila Head Office
______
_____
Customize the Fontenay

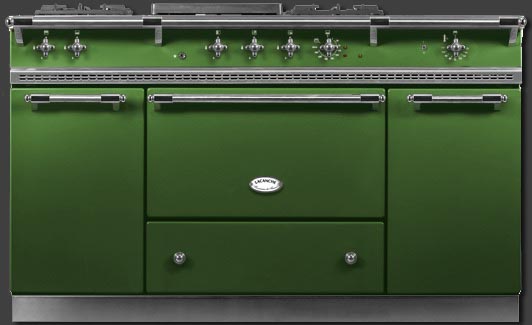

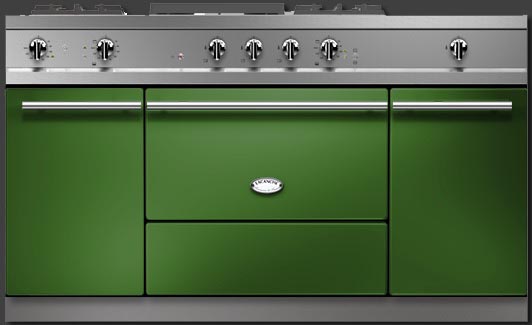

2 Lines :
24 Colors
Several Trims
Ovens Choices
1 gas oven (4 kW)
Vertical cabinets see option below
1 gas electric multifunctionoven (2,95 kW)
Vertical cabinets see option below

1 Oven 67 to 75 liters at the center, GN1 size (depending on models).
2 Vertical Cabinets 79 liters , GN1 size.
Size (W x H x D in mm): 1505 x930 x 650.
Weight (Kg): 150 to 200 Kg (according to the options).
220V / 60Hz Gas: 28mBar in accordance with the Filipino standard.




Vertical Left or Right Cabinets
Neutral Cabinet
Warming Cupboard

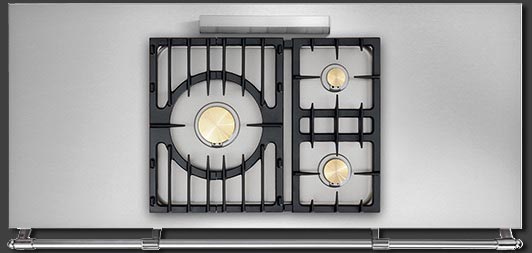

Hobs Type
Hobs Option for 1 to 3

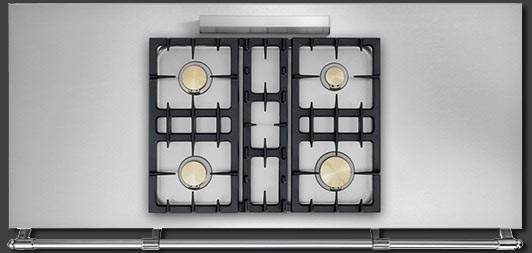

4 gas burners (base only): 4kW, 2x3kW and 1,5kW.
3 gas burners (base only): 5kW, 4kW and 1,5kW.

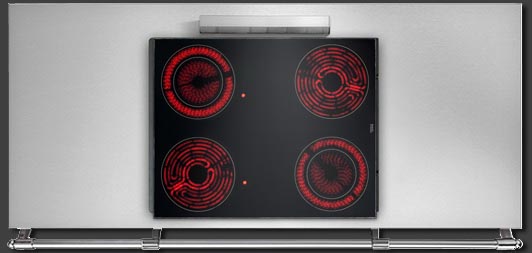

Radiant (base only): 2x2.1kW (210mm),
                                     2x dual rings 1kW/2.1Kw 140/210 mm.

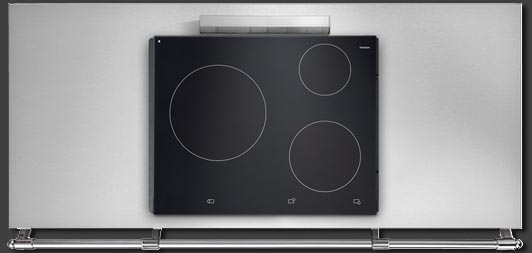

Induction (base only):  145 mm 1,4kW (booster 1.8Kw)
                                          200 mm 1,85kW (booster 2.5Kw)
                                          270 mm 1,4kW (booster 3.3Kw)
French Plate (base only): 5kW under the caste iron plate,
                                               4kW and 1,5kW.

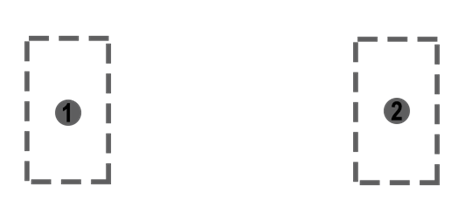

Add and Mix one or several Appliances in accordance with your cooking style:
Electric Deepfryer
Installation possible on areas 1 and 2.
Do not install on the top of Warming Cabinet.
Electric fryer, high capacity: 6 litres, 3.3 kW.
Pressed stainless steel tank with cold zone and oil outlet.
Thermostat 100/175°C and safety thermostat.
Removable heating  element unit, allowing an easy cleaning.
Stainless steel lid.
Supplied with a basket

Single 5kW gas Burner
Installation possible on areas 1 and 2.
Ideal for Wok Cooking
Gas Thermo-couple security.
Gas Gril
Installation possible on areas 1 and 2.
Cooking area 260 x 460 mm
Gas power 4Kw
Supplied with enamelled V type griddle.
Gas Thermo-couple security.

2 x 4kW gas Burner
Installation possible on areas 1 and 2.
Cap burner in brass.
Gas Thermo-couple security.
2 x 3kW gas Burner
Installation possible on areas 1 and 2.
Cap burner in brass.
Gas Thermo-couple security.
2 Rings Radiant
Installation possible on areas 1 and 2.
1 x 2100W (210mm)
1 dual rings 1000/2100W (140 and 210 mm)
Residual Heat Warming Light
2 Rings Induction
Installation possible on areas 1 and 2.
Do not install beside a french plate
1 x 1400W / Booster 1800W (145mm)
1 x 1850W / Booster 2500W (200mm)
Residual Heat Warming Light
Teppanyaki or Plancha
Installation possible on areas 1 and 2.
Cooking area 245 x 460 mm
15mm Iron Chrome Plated
Thermostat 50/250° C + Thermal security cut out.
Stainless steel lid.   Delivered with a scraper.
Electric Gril
Installation possible on areas 1 and 2.
Cooking area 260 x 460 mm
Power 2500w
1
Stainless steel cooking grid.
Variable power control.
The waterlight well collects the grease during cooking
allowing for easy cleaning.
Can be used with or without lava rock
Electric MultiCooker
Installation possible on areas 1 and 2.
Do not install on the top of Warming Cabinet.
Electric multicooker, 3 modes: steamer, bain marie, pasta boiler.
Pressed stainless steel tank
capacity: 12 litres with draining hose and overflow.
Heating element unit: 3.5 kW.
Water level safety thermostat.
Supplied with a GN 2/3 perforated container and its lid.

Ask assistance for your final design, technical information and other options.
